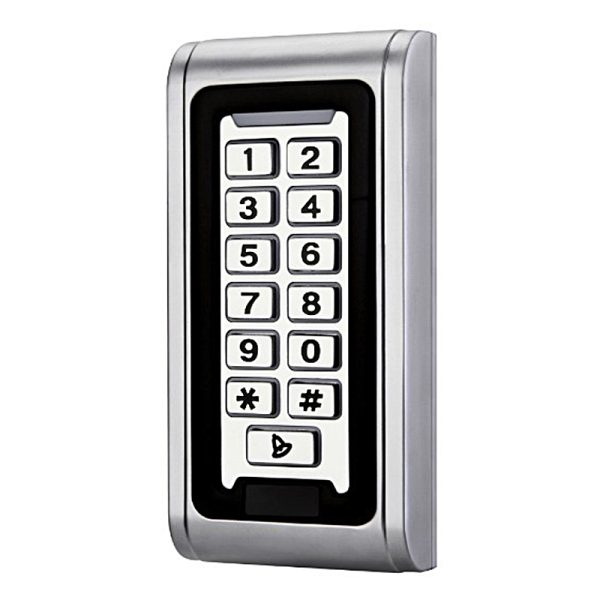

standalone keypad waterproof metal outdoor access

Card type: EM or MF Card

Metal structure design, anti-vandal

Digital backlit keyboard

All-in-one, WG26 output/input

Three-way to open the door, card, password, card + password

The doorbell button and interface: buttons and isolation circuit, connect to any external bell

Card type	EM or MF
Waterproof degree	Non-Waterproof/ IP68
User capacity	2000 card user card, 2000 user password
Environment Humidity	10%～90%
Lock output	≤3A
Working voltage	DC12V±10％
Static electricity	≤30mA
Alarm output	≤20A
Output short circuit protection time	≤100μS
Card read distance	5～8cm
Ambient temperature	-45℃～60℃
Door Opening Time	0～99s(Adjustable)
Dimension	1205620mm

Perfect design, with backlight and fashion silver finish.

Waterproof design for outdoor use.

A strong standalone function device can be used as a WG26 reader alone.

Capacity: 2000 user’s cards, 2000 codes.

Access ways: cards, code, card+code.

Low power: static current less than 30mA

Support the keypad/RFID or mifare IC card.

Users can reset private passwords.

Search fast less than 0.1S.

Wiegand output W26 for card and w4 for codes.

Use the keypad to delete lost cards for safety.

Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
