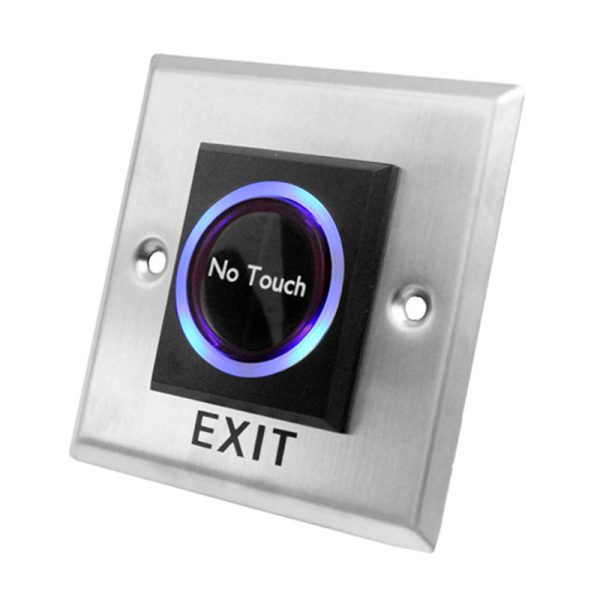

No Touch Exit Button Contactless Infrared Door Button Switch For Access Control
No Touch exit button
Contactless Infrared Door Button
Switch button for Access Control
work with EM lock ,door access control reader, biometric access machine
suitable for :indoor use
No Touch exit button Contactless Infrared Door Button Switch for Access Control
| Dimensions | 86 X 86 X 35mm |
| Standard Structure | Stainless steel Panel, Steel Button |
| Current Rating | 3A,36VDC Max |
| Output Contact | +12V GND NO NC COM |
| Mechanical Life | 1000000 tested |
| Suitable for Door | Hollow Door |
| Operating temp | -10℃ ~ 55°C (14°F-131°F) |
| Operating Humidity | 0-95% (non- condensing) |
| Detection range | 0.1-10cm |
LED Indicator
| White LED indicator | Power OFF |
| Blue LED indicator | Power ON(standby) |
| Red LED indicator | Power ON(sensation) |
| Weight | 0.25kg |
| Standard Packing | 70pcs |
