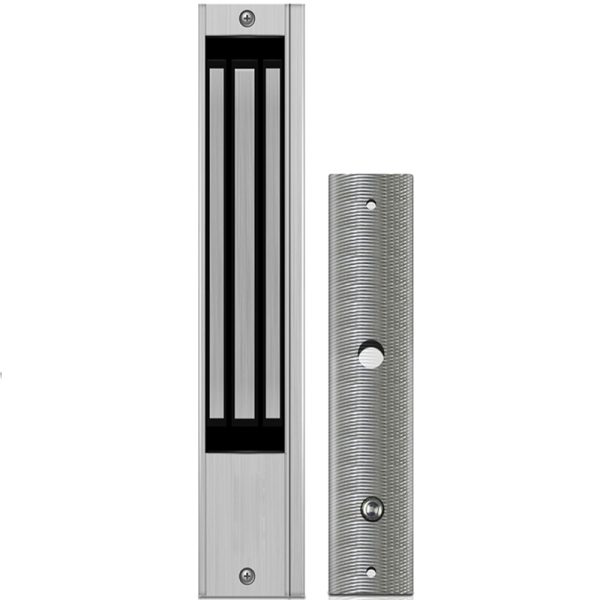

Electromagnetic Lock 600lb Holding Force mag locks for all doors
Lock size:250Lx48.5Wx25H(mm)
Plate:180Lx38Wx11H(mm)
Holding Force:280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw:12V/500mA 24V/250mA
Signal Output:Dry Contact
Max Rating of Contact: Current 3A
Suitable with: Keypad door access, multi door access, biometric access, RFID card reader, power supply, door closer etc
Workable for: wooden door, glass door, metal door etc
Request for brackets: depend on the door material to choose right brackets with L/Z/U
| Lock size | 250Lx48.5Wx25H(mm) |
| Plate | 180Lx38Wx11H(mm) |
| Holding Force | 280kg (600Lbs) |
| Voltage | DC12V or DC24V (adjustable) |
| Current Draw | 12V/500mA 24V/250mA |
| Signal Output | Dry Contact, Max Rating of Contact Current 3A |
| Surface Temp | ≤20°C |
| Operating Temp | -10°C ~ 55°C (14°F~131°F) |
| Suitable Humidity | 0~90%(non-condensing) |
| Finishes for Shell | Anodized aluminum surface texture processing |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 10pcs |
