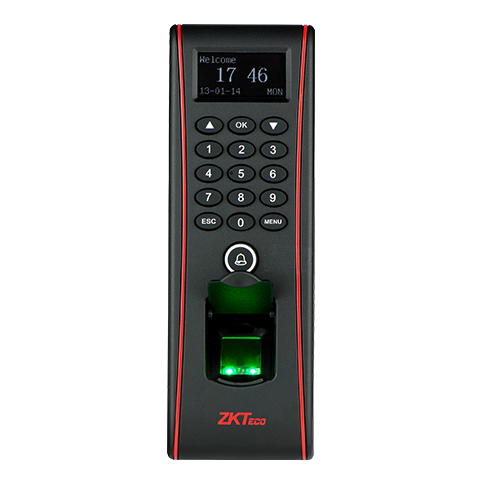

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKBioAccess management software which has versatile features and powerful functions.
- Fingerprint Sensor Type (optional)
Infrared detection fingerprint sensor
- Algorithm Version
ZK Finger V10.0
- Communication
TCP/IP, RS485, USB Host
- Fingerprint Capacity (optional)
3,000 Fingerprints (8,000 Optional)
- Card Capacity
10,000 Cards
- Logs Capacity
50,000 Transactions
- RF Card
EM (Standard) / IC Card (Optional)
- Wiegand Signal
Wiegand input & output
- Ingress Protection Rating
IP65
- Display
128 x 64 OLED
- Keypad
3 x 5 keypads & doorbell
- Power Supply
12V DC 3A
- Operating Temperature
-10 °C ~ 50 °C (14°F ~ 122°F)
- Dimension
62.5mm × 185mm × 41.5mm (W×H×D)
